Hydraulic Hose Keeps Failing.

Hydraulic Hose Keeps Failing: Abrasion, Routing and Pressure Problems.

If a hydraulic hose keeps failing in the same location, stop replacing it like-for-like until the cause has been checked. ENZED® can help identify common hose and fitting issues such as abrasion, incorrect routing, tight bend radius, pressure mismatch or poor protection, then support a more suitable replacement through your local Service Centre or HOSE DOCTOR® mobile service where available.

A hydraulic hose that keeps leaking, rubbing through, bursting or failing early is usually a sign of an underlying issue. The hose may be wearing against a bracket, bending too tightly, twisting during operation, running too close to heat, or being used in an application beyond its pressure or movement requirements.

Replacing the hose may get the machine running again, but if the cause of the failure is not addressed, the same problem can return. For equipment that works under load, vibration, heat, dirt, impact or constant movement, repeat hose failure should be treated as a warning sign.

Important safety note

Hydraulic systems can operate under extreme pressure. This article is general information only and is not a substitute for site safety procedures, equipment manufacturer instructions or advice from a qualified technician. Always stop the machine safely, isolate the work area and ensure the hydraulic system is depressurised before inspection or repair.

First step: make the equipment safe.

If a hose has failed, stop using the equipment as soon as it is safe to do so. Follow site safety procedures, isolate the work area and make sure the hydraulic system is depressurised by a trained person before anyone inspects or removes the hose.

Do not handle damaged hydraulic hoses while the system is pressurised. A weakened hose can fail suddenly, and high-pressure hydraulic fluid can cause serious injury.

Signs a hose failure may not be a one-off.

Some hose failures are caused by age, damage or normal wear. Others point to a repeat problem that needs closer attention.

Signs to look for include:

  • The same hose keeps leaking or bursting
  • The hose cover is rubbed, cut or worn through
  • The hose is kinked, flattened or twisted
  • The hose is running hard against metal, guards or brackets
  • The hose is bending sharply near a fitting
  • The leak appears near the crimped end
  • The hose fails soon after replacement
  • Multiple hoses in the same area show damage
  • The hose becomes hot, stiff, swollen or cracked
  • A fitting keeps loosening or leaking

If the replacement hose follows the same routing and uses the same specification without checking the cause, the failure may happen again.

Abrasion: one of the most common causes.

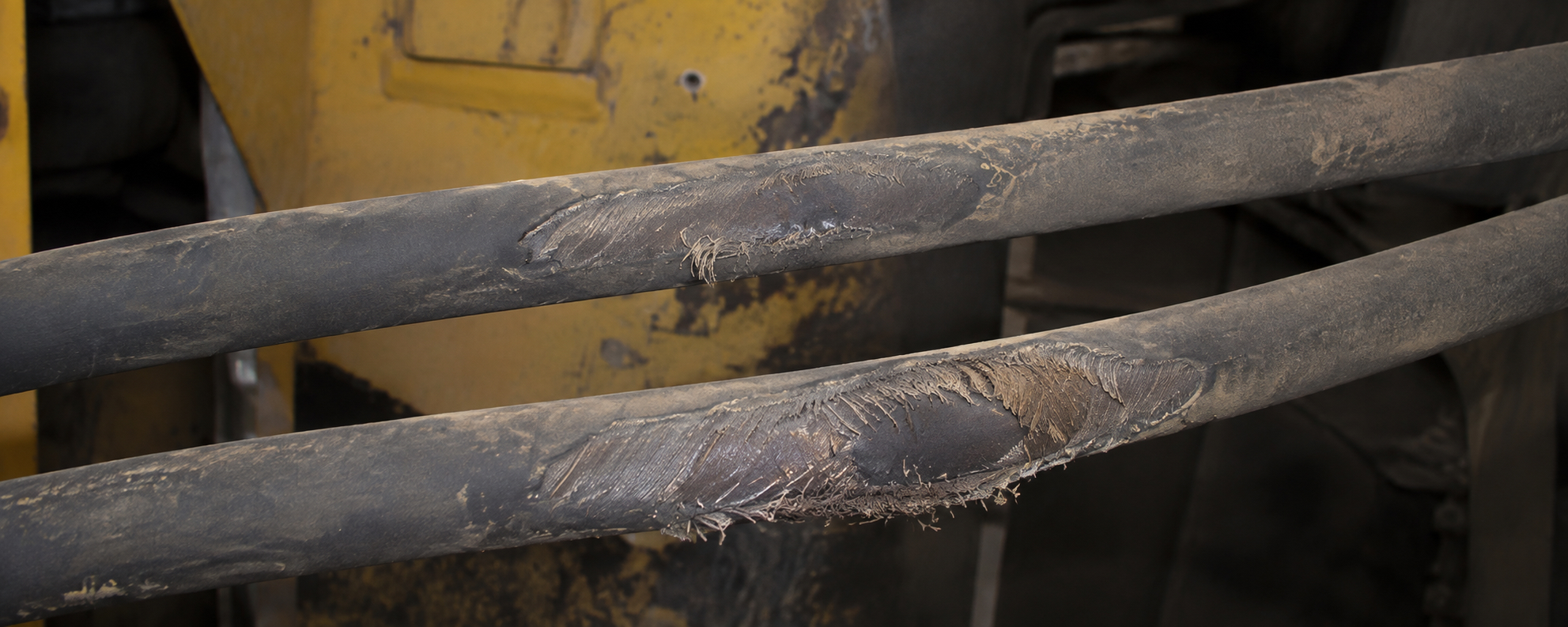

Abrasion is a common reason hydraulic hoses fail early. It happens when a hose rubs against machinery, guards, frames, brackets, other hoses, debris or moving parts.

Over time, abrasion can wear through the outer cover and expose the reinforcement beneath. Once the hose structure is compromised, the hose may begin leaking, swelling or bursting under pressure.

If abrasion is the issue, a replacement hose may also need improved routing, better clamping, hose protection or a different cover option depending on the application.

Abrasion is common on:

  • Excavator booms and arms
  • Loader arms and buckets
  • Forklift masts
  • Tipper bodies and tailgates
  • Truck hydraulic systems
  • Agricultural implements
  • Quarry and construction equipment
  • Waste and recycling machinery
  • Processing and manufacturing equipment

Routing and bend radius problems.

Hydraulic hoses need enough room to move without twisting, kinking or bending too tightly. Poor routing can reduce hose life, especially where the hose moves with a boom, arm, mast, attachment or steering system.

Common routing problems include:

  • Tight bends near fittings
  • Hose twisting during machine movement
  • Too much hose length creating rubbing points
  • Too little hose length causing tension
  • Hose contact with sharp edges or brackets
  • Poor clamping or missing supports
  • Hose movement across high-wear areas
  • Routing too close to heat sources
  • Hoses crossing or rubbing against each other

A hose that looks fine when the machine is parked may move, twist or stretch once the equipment is operating. Checking the hose through its normal range of movement can help identify routing problems.

Pressure and application mismatch.

A hydraulic hose must suit the pressure and application it is used in. If the hose is not correctly matched to the system, it may fail early.

Pressure-related issues can include:

  • Hose pressure rating too low for the application
  • Pressure spikes under heavy load
  • Incorrect hose type for the duty cycle
  • Incompatible hose or fitting selection
  • Incorrect hose size affecting flow
  • Heat and pressure working together to reduce hose life
  • Attachments or implements increasing system demand

High-pressure applications need the correct hose, fittings and assembly method. The hose assembly should also be suited to movement, environment, fluid type and operating conditions.

Fitting and crimp issues.

Repeat hose failure can also occur near the hose ends. This may relate to fitting selection, fitting orientation, hose movement, installation stress or connection issues.

If the hose fails close to the end fitting, the replacement should be checked carefully to make sure the fitting type, angle, orientation and routing suit the application.

Common hose-end problems include:

  • Leaks near the crimp
  • Incorrect fitting angle
  • Hose bending too close to the fitting
  • Damaged threads or sealing faces
  • Mismatched fittings or adaptors
  • Loose fittings caused by vibration
  • Fitting stress caused by poor routing
  • Incorrect orientation during installation

Why like-for-like replacement is not always enough.

A like-for-like replacement may be suitable when the hose has failed from age or isolated damage. But if the same hose keeps failing, copying the failed assembly without checking why it failed may only repeat the problem.
The aim is not just to replace the hose, but to reduce the chance of the same issue returning.

  • Where the hose failed
  • Whether it was rubbing, twisting, kinking or stretched
  • Whether it was rubbing, twisting, kinking or stretched
  • Whether the fittings were under stress
  • Whether the pressure rating was appropriate
  • Whether the hose was exposed to heat, impact or abrasion
  • Whether protection or routing changes may help
  • Whether the machine or attachment has changed since the last replacement

Information that helps ENZED® support the issue.

To help your local ENZED® Service Centre or HOSE DOCTOR® technician understand the failure, provide as much detail as possible.

The failed hose can provide useful clues. Wear marks, exposed reinforcement, cracks, flattened sections and damaged fittings can all help identify the cause.

Useful information includes:

  • Machine make and model
  • Equipment type and application
  • Where the hose is fitted on the machine
  • Photos of the failed hose before removal
  • Photos showing hose routing and movement area
  • Hose markings, if visible
  • Hose length, diameter and fitting details
  • Whether the hose has failed before
  • How long the previous hose lasted
  • Whether the machine uses attachments or implements
  • Any visible rubbing, heat, twisting, kinking or crushing
  • The failed hose assembly, if it can be safely removed

How ENZED® can help with repeat hydraulic hose failure.

ENZED® can help identify and replace hydraulic hoses that are failing due to abrasion, routing, pressure, fitting or application issues.

Your local ENZED® team can assist with:

  • Matching replacement hydraulic hose assemblies
  • Supplying hydraulic hoses, fittings and adaptors
  • Supporting high-pressure hose requirements
  • Identifying visible causes of repeat failure
  • Advising on hose routing and bend radius issues
  • Supporting hose protection options where suitable
  • Assisting with onsite hose replacement where mobile support is available
  • Helping reduce repeat failures caused by poor fit, movement or abrasion

The aim is to help you get a suitable replacement hose assembly fitted safely and reduce avoidable downtime.

When should you contact ENZED®?.

You should contact ENZED® if:

  • The same hydraulic hose keeps failing
  • A hose is rubbing through or showing abrasion
  • A hose keeps bursting under load
  • A hose is kinked, twisted, crushed or stretched
  • A fitting keeps leaking near the hose end
  • The hose fails soon after replacement
  • The equipment cannot be safely moved
  • You need a replacement hydraulic hose assembly
  • You need advice on hose routing or protection

Repeat failures are worth checking properly before another hose is installed in the same position.

Need help with a hydraulic hose that keeps failing?

Stop the equipment safely and contact your local ENZED® Service Centre.

If possible, have photos, hose markings, machine details and the failed hose assembly ready. This will help the ENZED® team identify the right hose and fitting requirements faster, and check for common causes of repeat failure.
